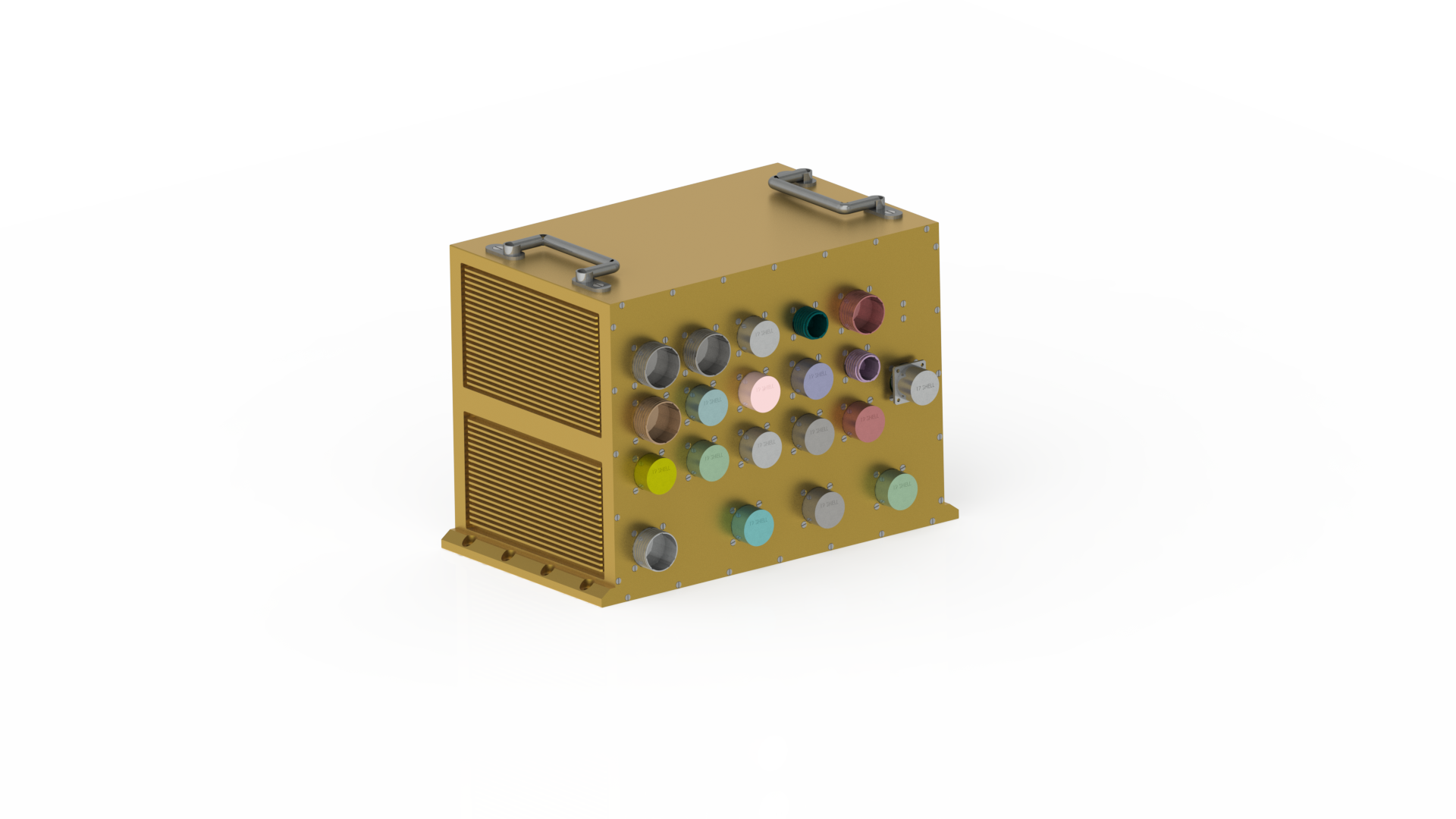

Canister Mechanism Electronics Module

Key Features :

• Performs canister operations through communication protocol with the main controller.
• Interfaces include limit switch status monitoring and motor control outputs.
• Designed to control operations like canister door movement and motor on/off for locking mechanisms.
• Integrated controller and motor driver cards for precise actuator and motor management.
• ZYNQ 7 Series FPGA implemented for actuator and motor control.
• System tested and validated using a simulation-based test setup.
• Enhances missile accuracy and operational reliability.
