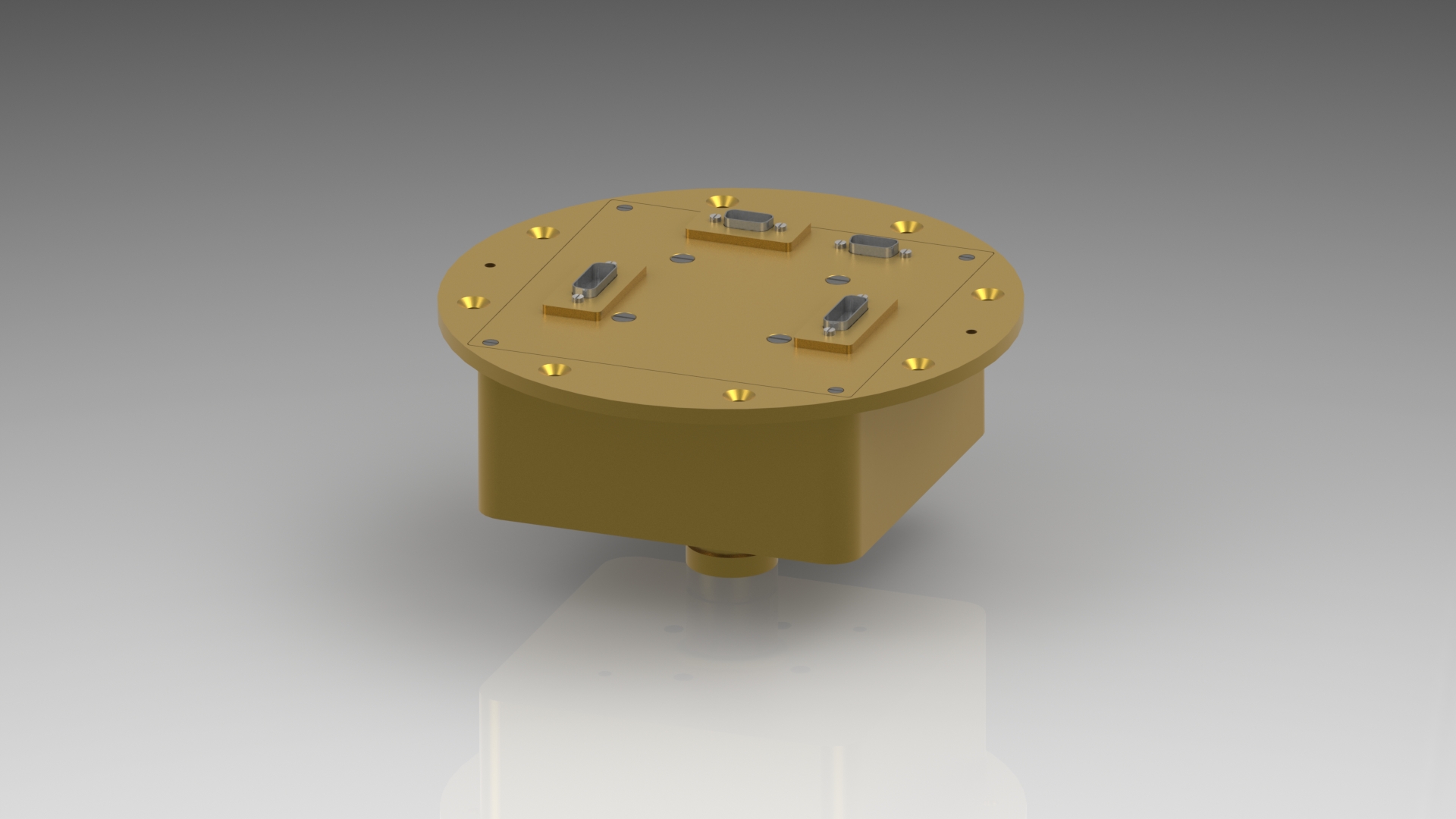

Safety Arming Mechanism - Pralay

Safety Arming Mechanism (SAM) for missiles, ensuring safety during handling, storage, and launch. It integrates an Electronic Control Unit (ECU) and Arming & Detonating Mechanism (ADM) via an interfacing card for controlled warhead detonation.

Key Features :

• Ensures missile safety during handling, transportation, storage, and launch, with flight-stage interlocks for controlled warhead detonation
• Microcontroller/FPGA-based unit controls power supply, communicates with subsystems, and generates arming and detonation signals
• ADM (Arming & Detonating Mechanism) incorporates dual arming mechanisms (rotor and sliding) for redundancy and safety
• Employs sleeve slider ball lock system to secure rotors in a safe position until arming is authorized
• Includes impact and launch force sensors, squib holder, rotor/sliding assembly, igniter holder, and detonator with booster
• ECU and ADM are linked via an interfacing card to ensure synchronized and coordinated operation
