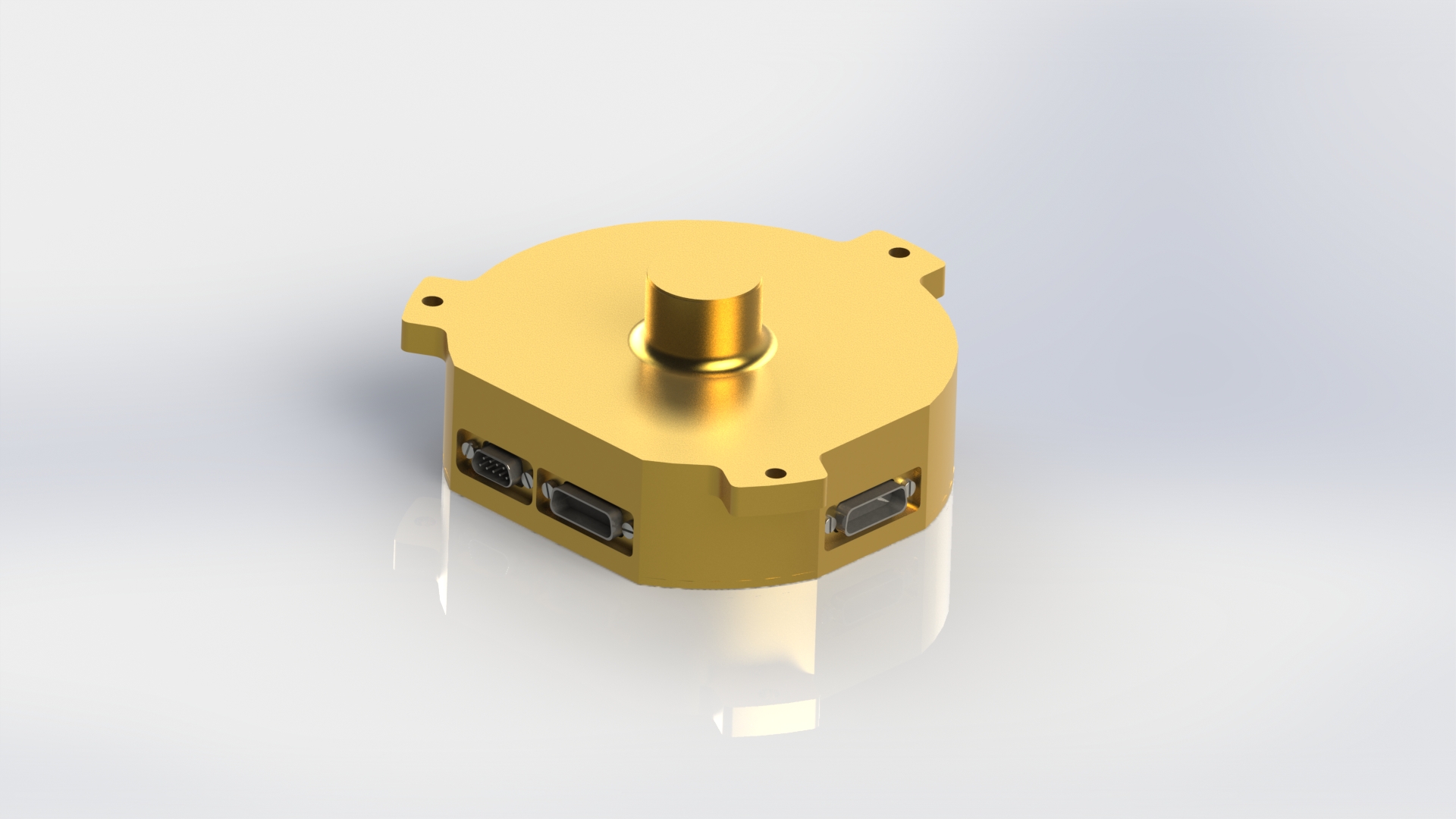

Safety Arming Mechanism - QR

Key Features :

• Ensures missile safety during handling, transportation, storage, and launch, with interlocks progressively removed at various flight stages for controlled warhead detonation
• Microcontroller/FPGA-based unit manages power distribution, interfaces with subsystems, and generates output signals for arming and detonation
• ADM (Arming & Detonating Mechanism) is a mechanical subsystem with dual arming mechanisms (rotor and sliding) to ensure redundancy and reliability
• Utilizes a sleeve slider ball lock to secure rotors in a safe position until authorized arming
• Incorporates impact and launch force sensing assemblies, squib holder, rotor/sliding arming mechanism, igniter holder, and a detonator with booster
• ECU and ADM are integrated through an interfacing card to enable coordinated, real-time operation
