The RGB-60 (Rocket Guided Bomb Model 60) is an Anti-Submarine weapon with a range og 5,700-6,000 m that can function to depths of 500m. RGB-60 rockets carry unguided depth charges. Rocket RGB-60 is used against underwater targets (i.e. Submarines, Torpedoes etc.) This rocket is fired from A/s Rocket Launcher RBU-6000 (Russian launcher) and Indigenous launcher fitted on-board platforms. The rocket can be fired in Single or Salvo Mode depending upon the tactical requirements. The rocket is fitted with Electronics Fuze for functioning in DA (Direct Action) and SD/Time mode. Electronics Fuze allows the Rocket to home in on targets at depths of upto 1,000 metres (3300 ft). It can also be used against the torpedoes also.
The RGB-60 (Rocket Guided Bomb Model 60) is an Anti-Submarine weapon with a range og 5,700-6,000 m that can function to depths of 500m. RGB-60 rockets carry unguided depth charges. Rocket RGB-60 is used against underwater targets (i.e. Submarines, Torpedoes etc.) This rocket is fired from A/s Rocket Launcher RBU-6000 (Russian launcher) and Indigenous launcher fitted on-board platforms. The rocket can be fired in Single or Salvo Mode depending upon the tactical requirements. The rocket is fitted with Electronics Fuze for functioning in DA (Direct Action) and SD/Time mode. Electronics Fuze allows the Rocket to home in on targets at depths of upto 1,000 metres (3300 ft). It can also be used against the torpedoes also.
This project has been Designed and Developed by Defence Research and Development Organisation (DRDO).
Specifications: | - - - |
---|---|
RGB-60 | |
Weight of Filled Rocket: | 113.05 Kg |
Main Filling: | HE/IM |
Type and Weight of HE: | Approx 24 Kgs |
Weight of Propellant: | Fore Motor - 7 Kg |
Aft Motor - 8 Kg | |
Type of Propellant: | Composite Propellant |
Diameter: | 212 mm |
Length of Rocket: | 1830 mm |
Range: | 300 - 5500 m |
Sinking Rate: | 11.6 m/s |

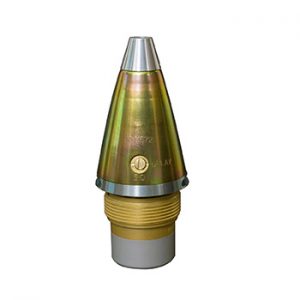

Electronics Fuze: | |
Length: | 361 mm |
Max Diameter: | 135 mm |
Diameter At Stem: | 74 mm |
Weight: | < 2 Kgs |
Technical Data: | - - - |
---|
