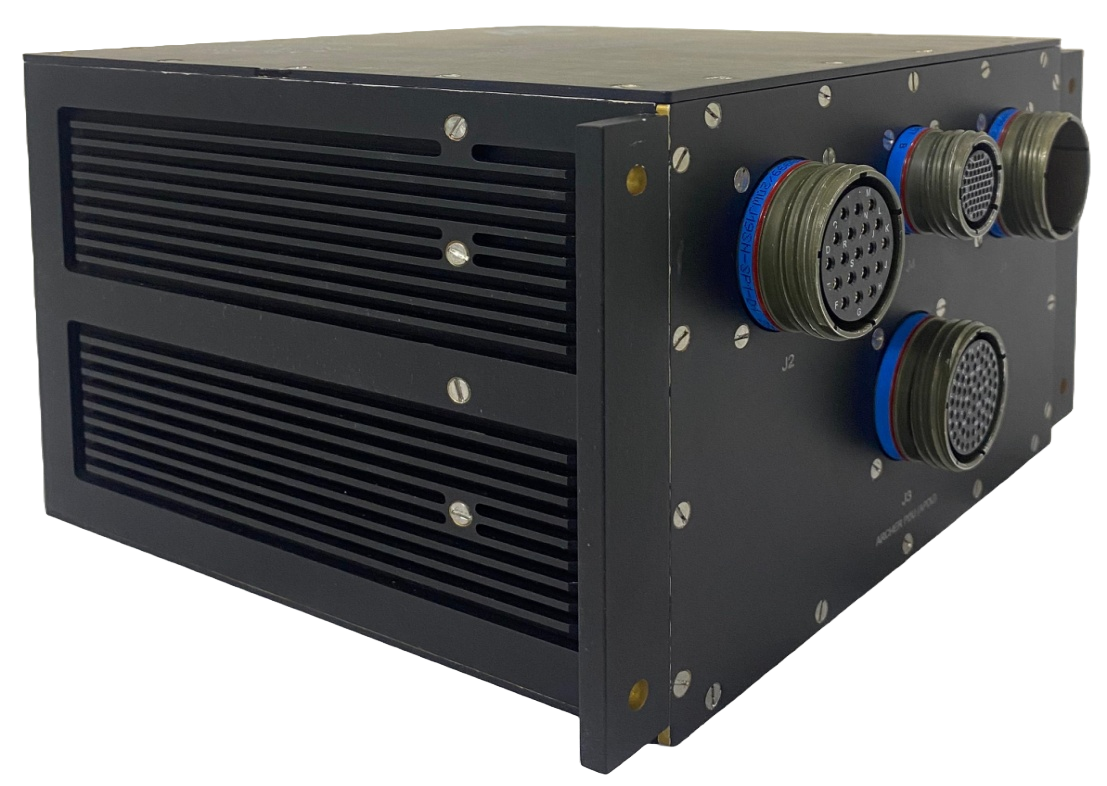

ARCHER POWER DISTRIBUTION UNIT

Key Features :

• Monitoring command/response of subsystems and transmitting digital data via RS422 interface for communication.
• Monitors voltages, currents, and temperature sensors in the power supply subsystems.
• Designed, developed, and fabricated the Archer Power Distribution Unit.
• Implements DSPIC Microcontroller for data control and bulk data handling.
• Uses I/O resources for real-time data exchange and relays for power switching to subsystems.
• Integrated temperature sensors to monitor heat within the unit.
• Qualifies design to MIL STD-461E/F, MIL STD 704D, MIL STD 810F, MIL STD 810G & JSS-55555 standards.
• Purpose is to provide controlled power distribution for UAV subsystems with multiple payload capabilities.
