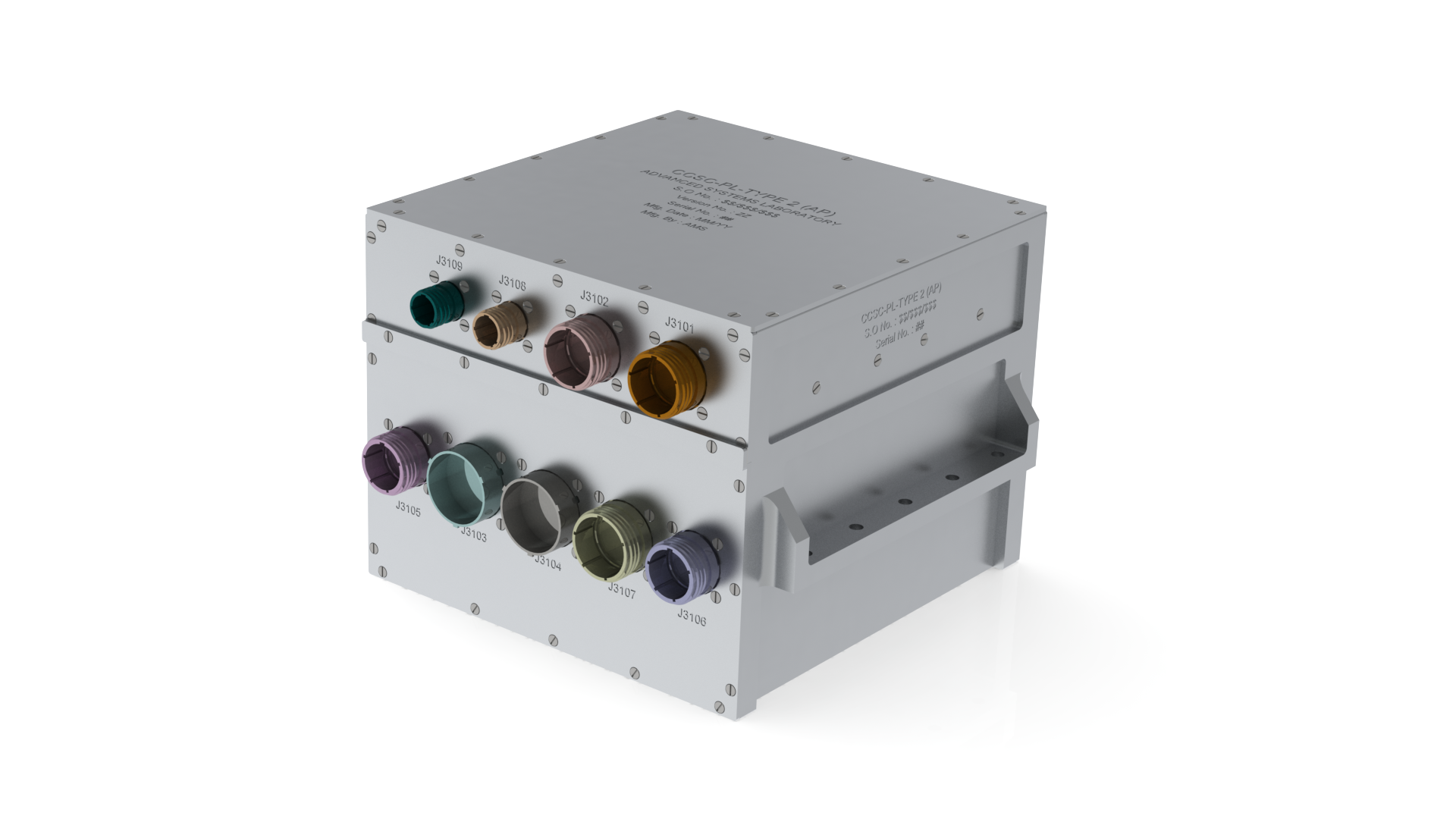

Command Control Signal Conditioning Unit

Key Features :

• Monitors command/response of subsystems through MIL-1553B.
• Switches subsystems' power on/off via relay switching.
• Sends command voltages to control systems and provides excitation supply to pressure transducers.
• Conditions signal voltages and measures battery voltages and system pressures.
• Operates pyro devices by supplying power through relay switching.
• Monitors battery status, current, and supply values in real-time.
• Combines single MIU section with three relay sections in one unit.
• Design qualifies to MIL STD-461E/F/G, MIL STD 883, MIL STD 344A & JSS-0256 standards.
• Uses ARTIX-7 FPGA for guidance through MIL-1553B protocol and I/O resources for real-time data exchange.
• Upgrades the individual processing unit with a box section in a single unit for Base Shroud, Inter-stage & Payload sections of the Agni missile.
