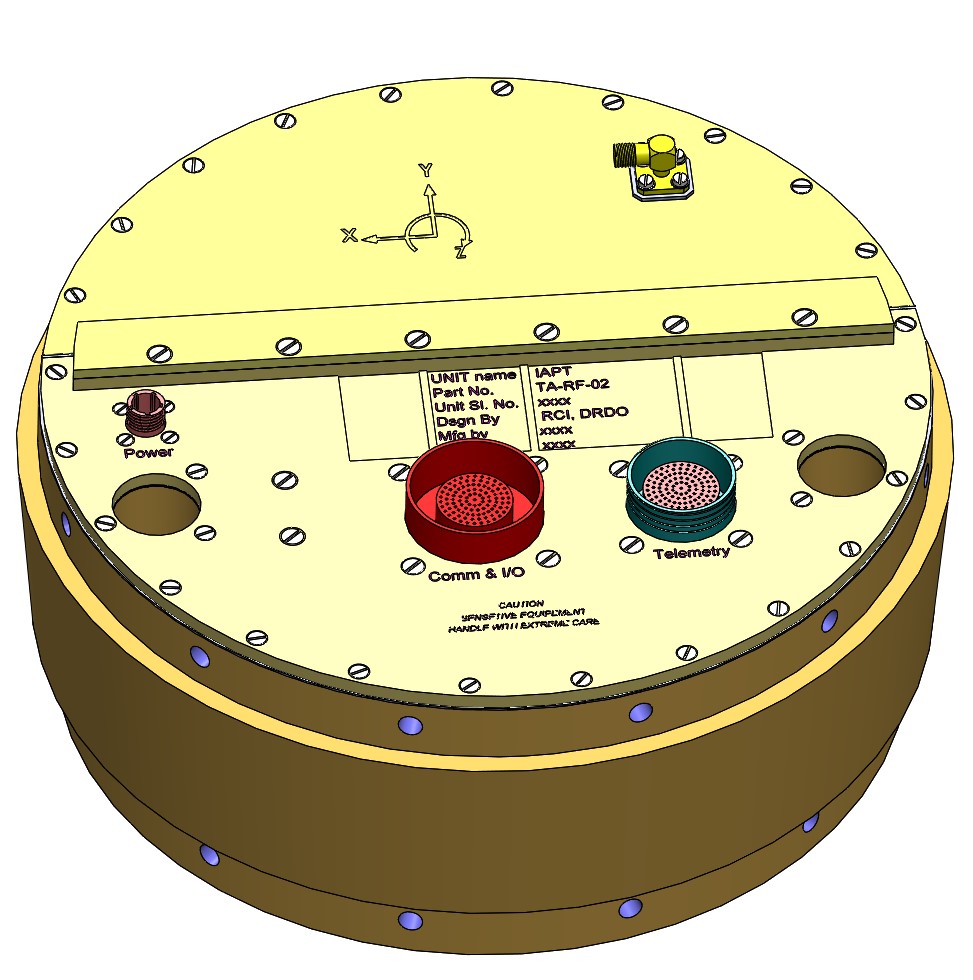

Integrated Avionics Package for Tara

Key Features :

• The system includes asynchronous RS422 channels for serial link communication, with channel to interface with MEMS-based IMU, channel for debugging, channel for Ephemeris Data Loading, channel for the Seeker, and channels as spares.
• It features dual redundant Bus channels with dual port RAM of 64Kx16 for MIL-STD-1553B, including nodes for the aircraft Bus and a node as the Missile Bus.
• There is an Ethernet channel to interface with the Seeker for data logging.
• The system provides SPORT channels, one to interface with G2IOM and another to interface with the IMU.
• It offers input channels with bipolar inputs and 16-bit resolution for Analog Inputs (ADCs), comprising channels for Strain, channels for Temperature, channels for Vibration, and channels for Electrical.
• There are Analog Output channels (DACs) to interface with Actuators.
• The system includes Discrete Output Points (DOPs) with Relay drivers for pyro-firing.
• It features Opto-isolated Discrete Input Points (DIPs), with some to monitor EXT Supply, Avionics Battery, Control Battery, and Snap-off status, RT ADDRESS lines, and DIPs for general purpose.
