The Launcher shall be manufactured using Stainless Steel Material. The Launcher shall have Azimuth coverage of 360 Deg. The Launcher shall have Elevation range of -10 to +70 Deg. The Launcher can operate between -20 to +45 oc. Shall be Capable of firing bank of rockets. Can be mounted on vehicle platform. No of Launch Tubes shall be multiple of 16.

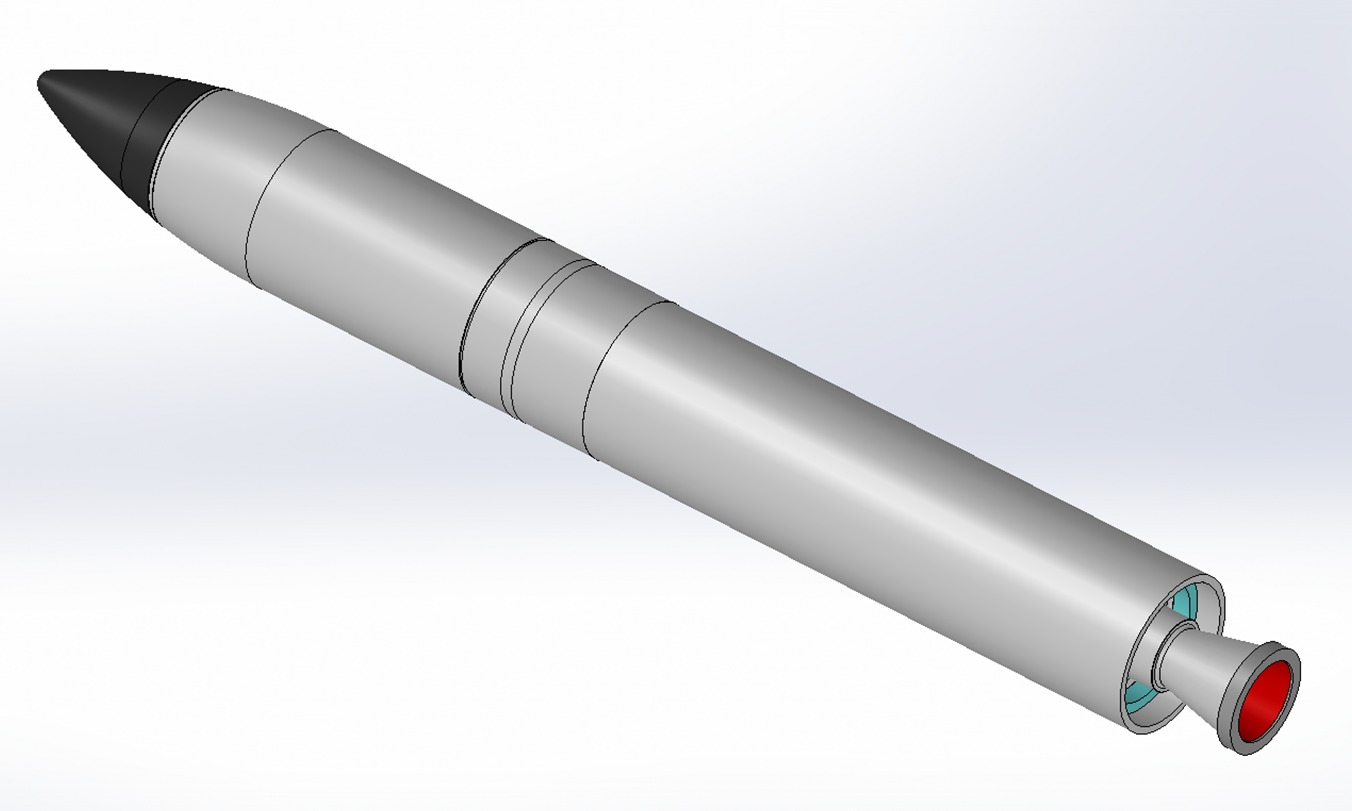

| Specifications: | - - - |
|---|---|
| Maximum Range: | 5.0 km |
| Minimum Range: | 50 m |
| Diameter: | 105.0 mm |
| Length: | Less than 1000 mm |
| Mass: | 12 Kgs |
| Propulsion: | Composite Propellant |
| Warhead: | 5Kgs. (pre-fragmentation) |
| Fuze: | Electronic Proximity or Timer fuze |
| Type of Guidance: | Unguided |
| Engaging Height: | 30 m - 1500 m |
| Speed: | 150 m/sec |
| Warhead Type: | Fragmentation Type with blast radius upto 10 m |
