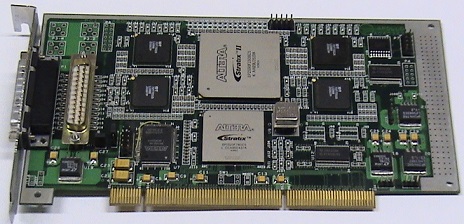

Apollo introducing industries fastest quad channel satellite Data recorder and replay system. This is based on High-performance High-reliability PCI-X Based server architecture with dual/quad Xeon processors. Mirrored System Drives hot Swap Fans & redundant power supplies It provides a 10/100 Ethernet interface for monitor control and Gigabit Ethernet interface for high speed network data transfer. The product offered is well proven & Standardized in various satellite programs of ISRO.
- 4 series channels each can support up to 320Mbps
- 8 Parallel Channels ech can support up to 20Mbps
- Channel width configuarable as 8,16 or 32bit
- Each serial channel have independent Data, clock signal
- Real time display for frames Elapsed(X10k),Frame Loss
- High Speed network transfer
- User friendly Graphical user interface(GUI)
- Data Rate Per Channel: 100bps to 320 Mbps.
- No of Channel: Four
- Input Signal Type: LVDS standard
- Signals: Data with associated clock
- Adjustable Delay: Adjust clock phase using the internal delay logi(The data delay will be in steps from 0 to 15, with each step being 250 ps) so as to ensure proper latching of the signal at the front end.
- Data Polarity: Normal and invert programmable
- Time Code Interface: IRIG-A/B/G Standard modulated time code Signal on a BNC connector
- High-Bit rate remote sensing ground stations
- Satellite/Payload integration and test
- High-Rate digital data record/playback system
- Satellite link emulation,testing monitoring
- Aircraft Data Acquisition
- High-precision doppler measurment
- High-reliability ground station radio
- High data rate full duplex radio
